Stone Fruit Processing Line

Stone fruits including peaches, apricots, and plums have soft flesh, so they can bruise easily during processing and start to darken once they are cut. Our stone fruit processing lines normally start with washing and sorting, followed by destoning and crushing. Once those processes are finished, the fruit is then made into pulp and refined in a closed section where inert gas is used to reduce contact with oxygen and slow down browning.

After pulping and refining, where skins and coarse solids are removed from the fruit pulp, the pulp moves on to the concentration and sterilization process. Peach and apricot pulp is thick and fibrous, so it does not move through the heating section as easily as a thinner juice. Tubular sterilizers are suitable for processing this type of fruit pulp because they keep the flow more even during heating and reduce the risk of scorching or product build-up on the heated surfaces.

Contact Us
Stone Fruit Processing Line

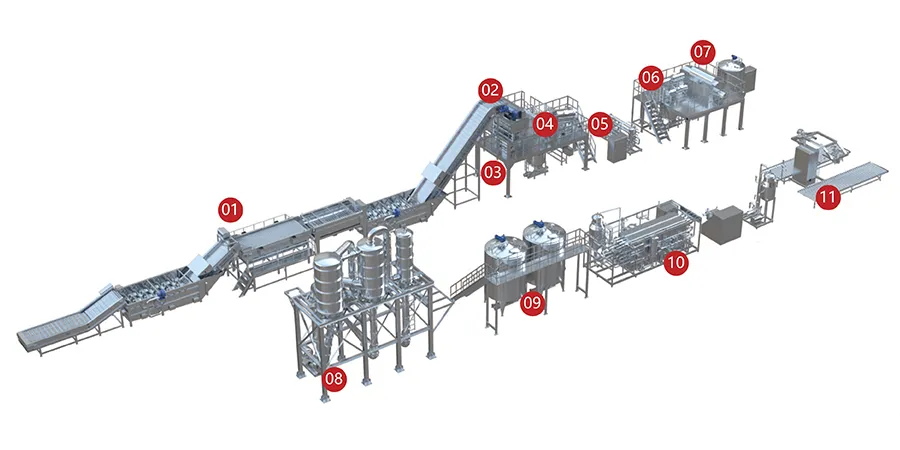

Process Flow

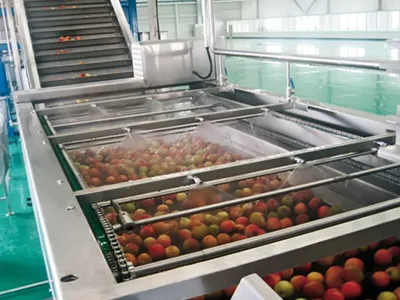

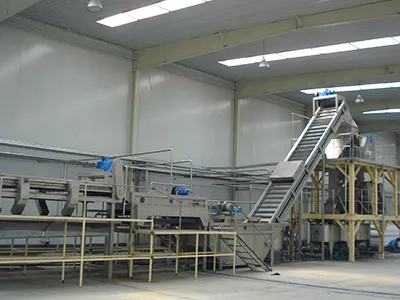

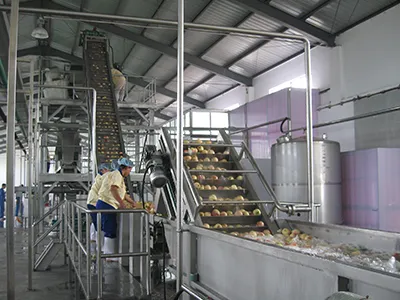

  • Washing, sorting system
  • Destoning system
  • Stone washing system
  • Crushing system
  • Heating

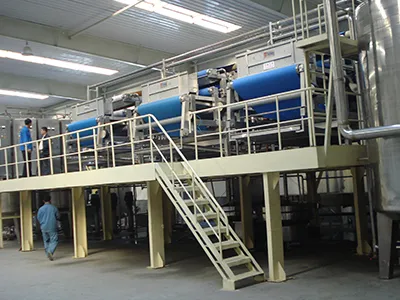

  • Pulping system
  • Decanter centrifuge system

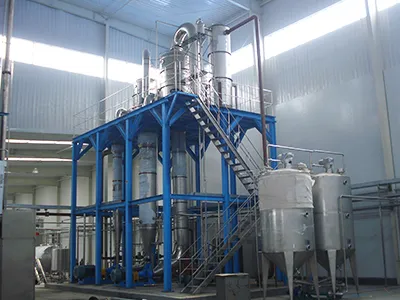

  • Concentration system
  • Temporary storage system

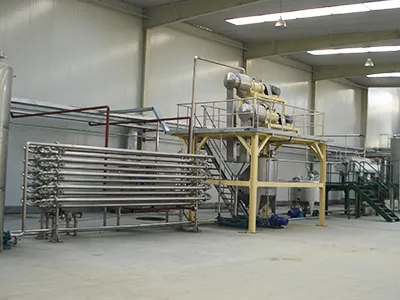

  • Sterilization, homogenization System
  • Aseptic large bag filling system
Main Components
  • Stone Fruit Processing Line
  • Stone Fruit Processing Line
  • Stone Fruit Processing Line
  • Stone Fruit Processing Line
  • Stone Fruit Processing Line
  • Stone Fruit Processing Line
Shanghai Joy is a supplier of stainless steel processing equipment and engineering project services for the global food industry. The scope covers processing lines from raw material pretreatment and filling to secondary packaging, as well as individual equipment including stainless steel tanks, sterilizers, concentration units and filling machines.
