Description:
The automatic horizontal packing machine B•SP is applicable for such sectors as foodstuff, pesticide, pharmaceuticals, daily chemicals etc. The machine can choose from different filling methods according to nature of material. There are liquid packing machinery, powder packing equipment, particle packing machine, dope packing equipment, foodstuff packing machinery, packing equipment etc. The measurement of this machinery is accurate.
Features:
This equipment is well equipped with high quality part, mainframe frequency conversion system,  servo blanking system, package making system, finished product sealing system, integrated control system, the photoelectric sensor transducer, encoder, proximity switch, dual-package shaping system, to name a few. We classify those a follows:

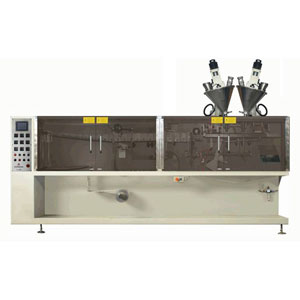

B•SP Automatic Horizontal Packing Machine

B•SP Automatic Horizontal Packing Machine

1.Our mainframe frequency conversion system used in this machine is imported AC motor with frequency conversion, stable and reliable operation; low speed and large torque which ensure this equipment in excellent performance even under sharp fluctuations of load.
2. The servo blanking system adopt in this machinery is that of Panasonic servo motor which controls rotation of blanking bolt directly by pulse number; stable and reliable performance, convenience of regulation.
3. Our package making system: The package making and sealing and filling systems are independent in this system. The two systems are linked and coordinated by mechanical coupling and programmable logic controller (PLC). As a result, the system is suitable for a variety of products and sizes of package work.
4. The finished product sealing system of this machine: It is fully automatic production facility that can finish package making, metering, filling, sealing and other packaging processes by heat-sealing packaging material (polyethylene membrane, multilayer composite membrane etc.). The package should be three-side or four-side sealed flat package type. Fillers of different types can package a variety of products.
5. Integrated control system in this automatic horizontal packing machine is composed of PLC, frequency converter etc., featuring a high level of integration, strong control capabilities and high reliability of operation. It is touch screen technology eases and facilities operation.
6. The photoelectric sensor transducer, encoder, proximity switch etc. are all equipped with imported and advanced sensing elements, so the mechanical and electrical integration of the
entire frame is embodied perfectly.
7. The dual-package shaping system in this machine is of two vertical sealing devices yield two packages that is joined together each time, doubling the production capacity. In the meanwhile, different materials could be added to the two packages separately, meeting specific needs of customer.

Technical Parameters:
Type   B.SP110 B.SP-130 B.SP-180
Package Width   50mm—110mm 65mm-140mm  70-180(mm)
Package Height   50mm—130mm 70mm-180mm 80-225(mm)
Max. Packaging Capacity   60ml 160ml 400ml
Speed   40—80bag/min 40-80 bag/min 40-80 bag/min
Error   ≤±1.5% ≤±1.5% ≤±1%
Membrane Roll Diameter   400mm 400mm  500mm
Power Consumption   2kw 3.5kw 4.5kw
Weight   520kg 600kg 1200kg
Dimension 2200×950×2300(mm) 3000×950×1400(mm) 3500×970×1450(mm)

Boom Industry is a professional manufacturer and supplier of automatic horizontal packing machine in China. With 15 years experience of producing, selling and service in this products, we have automatic horizontal packing machine worldwide like the United States, Japan, Russia, Australia, New Zealand, Indonesia, Malaysia, India, Burma, Italy, France, Nigeria, Vietnam, Iran, Syria, Kazakhstan, Poland, Romania etc, more than 80 countries and regions, and gain great reputation among those customers. If you need automatic horizontal packing machine please contact us.
